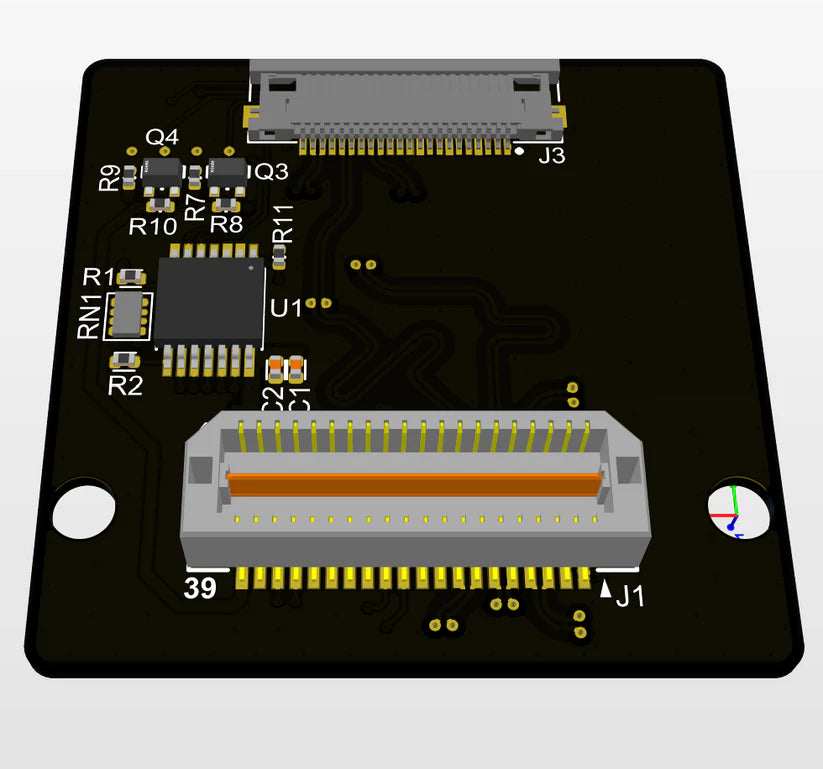

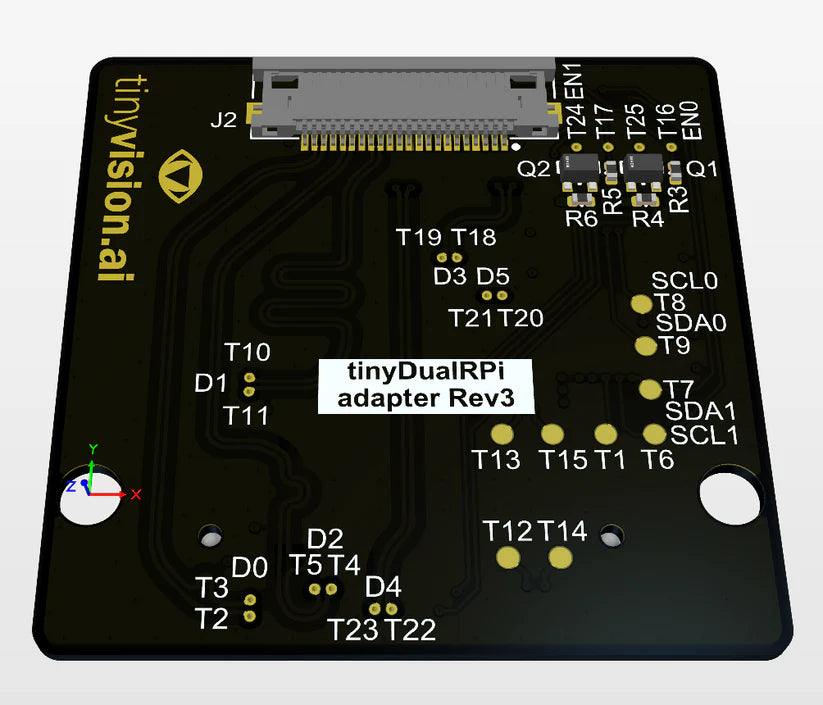

Syzygy MIPI Input/Output Adapter - MIPI to USB Adapter Board

This Syzygy compatible adapter MIPI to USB Adapter Board works with the tinyCLUNX33 MIPI to USB converter developer kit to enable connecting one dual lane MIPI camera to the devkit and one dual lane MIPI output. Cameras supported include the RPi camera v2. This can be useful for camera passthrough applications.

The current generation of these MIPI to USB adapters uses a 15 pin camera connector and the next generation version will use the 22 pin camera connectors.

See the Schematic and Assembly drawings for further details.
