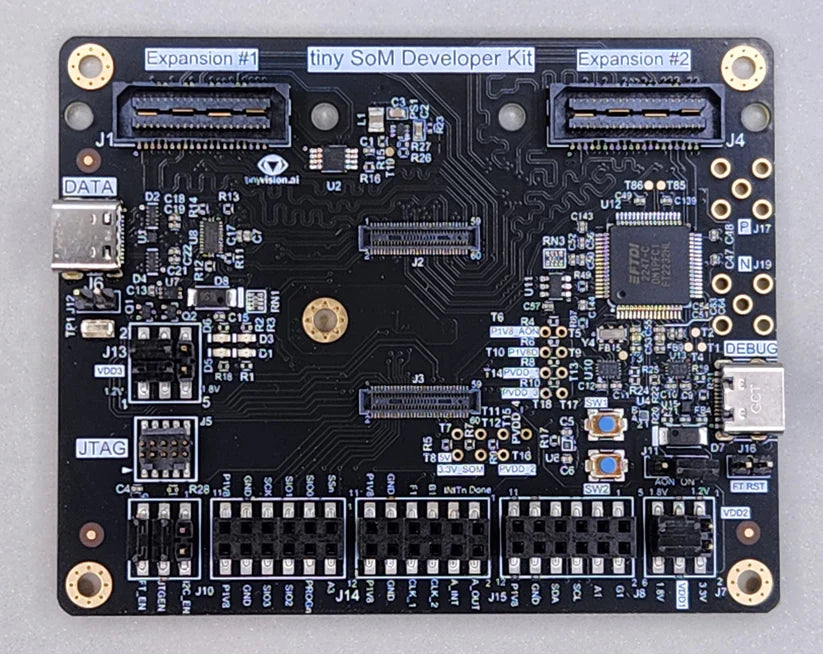

tinyCLUNX33 Developer Kit - MIPI to USB

This MIPI to USB converter developer kit is a carrier for the tinyCLUNX33 SoM MIPI to USB Connector that eases product development and debugging.

Elevate your edge vision AI projects with our MIPI to USB converter kit, designed to double as a high-performance camera development board. Simply plug your camera into the MIPI interface, and you're ready to start testing your camera design. Need driver modifications? You can either tweak them yourself or let us handle it for you.

Powered by the Lattice CrosslinkU-NX33 FPGA, this kit integrates a soft-core RISC-V processor running Zephyr, alongside onboard memory for seamless edge computing. With the RISC-V core and onboard memory, you can run AI algorithms for real-time image and video processing directly at the edge.

For engineers seeking high-performance data throughput, this devkit delivers a FHD 30 FPS UVC video stream with zero processor bottleneck. The RTL fully accelerates the UVC pipeline, freeing up the RISC-V processor for your custom applications. Tested to deliver up to 3.3 Gbps throughput at the application layer, it can easily handle three cameras streaming FHD video at 30 FPS with bandwidth to spare for additional sensors.

Ready to optimize your edge vision AI workflow? Contact us at sales@tinyvision.ai to discuss your specific requirements.

Features:

• All SoM pins exposed, additional probing and voltage pins
• USB3 at 5 Gbit/s integrated with a Type-C port controller
• GPIO LED's and push buttons
• FTDI chip for JTAG, Flash SPI, UART access over USB

Connectors:

• 2 × USB-C connectors for the FPGA 5 Gbit/s interfaces and FTDI debug.
• 2 × QSE expansion connectors for adapter boards, Syzygy compatible.
• 0.1" headers for JTAG, SPI flash, I2C, GPIO.
• Power measurement series resistors on all power rails.
