What’s a Camera Development Board?
A camera development board is a hardware platform designed to facilitate the design, testing, and prototyping of camera systems. These boards typically integrate a camera sensor and essential components such as processing units, memory, and interfaces for input/output.
They are commonly used by engineers and developers to streamline the development of camera-based applications in fields like robotics, surveillance, automotive systems, and consumer electronics.

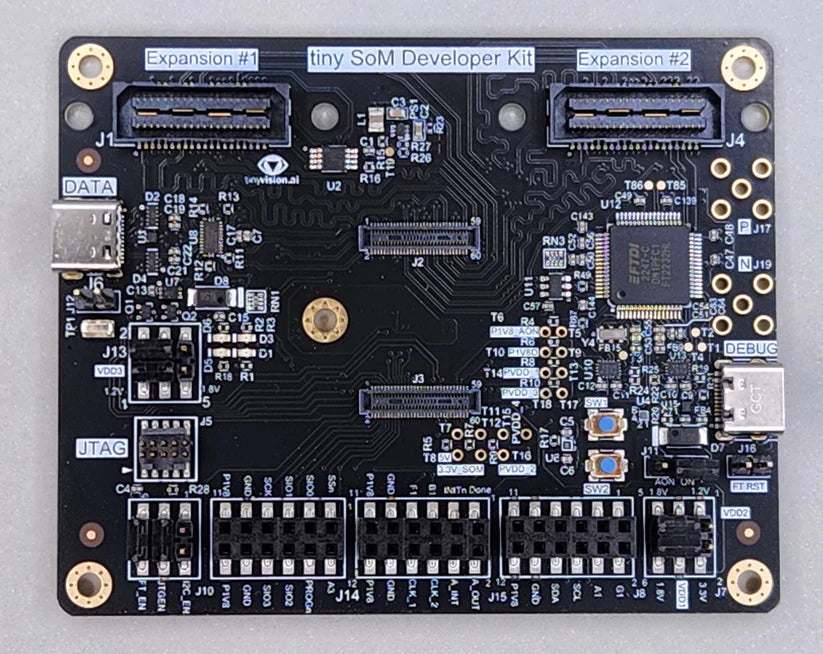

Check out our FPGA Camera Development Board
What are the Benefits of Using a Camera Development Board?
- Rapid Prototyping: Camera development boards allow engineers to quickly prototype and test camera systems without building custom hardware from scratch. This reduces time to market and enables faster iteration on designs.
- Flexibility in Design: These boards offer a flexible platform for experimenting with different camera sensors, lenses, and image processing algorithms, enabling tailored solutions for specific use cases.
- Integration with Other Systems: Camera development boards often come with interfaces that allow integration with other hardware components like processors, FPGAs, and machine learning accelerators, making them suitable for a wide range of applications.
- Cost-Effective: By using off-the-shelf camera development boards, companies can avoid the high costs associated with designing and manufacturing custom camera hardware for initial development phases.
- Ease of Testing: These boards simplify testing of various camera modules, such as resolution, frame rate, and image quality, allowing for efficient validation of new designs.
How Does a Camera Development Board with MIPI to USB Converter Speed Up Camera Development?
A camera development board equipped with a MIPI to USB converter plays a crucial role in speeding up the development process. Here's how:
- Plug-and-Play Functionality: The MIPI to USB converter allows developers to quickly connect a camera sensor to a PC or other development systems via a standard USB interface. This simplifies the integration process, enabling immediate testing and debugging without complex setups.
- Wide Compatibility: USB interfaces are widely supported across multiple operating systems and platforms, making it easier to work with a broader range of development environments and tools.
- Streamlined Data Transfer: MIPI interfaces are commonly used in camera sensors for fast data transfer, and converting MIPI to USB allows developers to leverage this high-speed data for real-time testing and evaluation of image and video streams.
- Faster Iterations: The simplicity of the USB interface, combined with the high-speed data transmission of MIPI, ensures that developers can test, modify, and retest camera systems efficiently, speeding up the overall development cycle.
What is an FPGA Camera Development Board?
An FPGA (Field-Programmable Gate Array) camera development board is a specialized platform that combines an FPGA chip with a camera sensor. These boards offer unparalleled flexibility in camera system design, as the FPGA can be programmed to perform a variety of tasks such as real-time image processing, video compression, and even AI-based tasks like object recognition.
FPGA camera development boards are often used in applications that require high-performance, low-latency image processing, such as automotive vision systems, robotics, and industrial inspection.
Is an FPGA Camera Development Board Better Than Other Alternatives?
Whether an FPGA camera development board is better than other alternatives depends on the specific application:
- Customization: FPGAs offer unmatched flexibility for custom image processing algorithms, which can be a significant advantage over fixed-function hardware like DSPs (Digital Signal Processors) or traditional processors.
- Parallel Processing: FPGAs excel at parallel processing, making them ideal for applications requiring real-time image and video processing, where other systems may struggle with performance bottlenecks.
- Scalability: FPGA-based solutions can scale from simple image processing tasks to highly complex operations, providing greater versatility compared to general-purpose processors.
However, FPGAs can be more challenging to program and require specialized knowledge of hardware description languages. For simpler camera applications, alternative solutions like microcontrollers or DSPs may be more appropriate due to their ease of use and shorter development time.
What are the Challenges in Testing a New Camera Under Development?
- Image Quality Assessment: Evaluating image quality across different lighting conditions, resolutions, and frame rates is critical but challenging. Developers must fine-tune the camera’s sensor settings to achieve optimal image quality, which can be time-consuming.
- Latency: In real-time applications such as autonomous vehicles or drones, latency in image capture and processing can be a significant challenge. Developers need to ensure the camera system can process data quickly enough to meet the application’s requirements.
- Thermal Management: Cameras, especially high-performance ones, can generate significant heat during operation. Managing thermal output and ensuring the system remains within safe operating temperatures is crucial for long-term reliability.
- Power Consumption: Testing the power efficiency of a camera system is essential for battery-powered applications such as mobile devices or drones. Striking the right balance between performance and power consumption is a challenge.
- Synchronization: For applications with multiple cameras (such as 3D vision systems), ensuring synchronization between cameras is a complex task. Developers need to carefully test timing and data transfer to ensure accurate results.
- Interference with Other Components: Camera systems are often part of larger, integrated systems. Testing to ensure that the camera functions correctly without interfering with or being affected by other components can present additional challenges.
How Does a MIPI to USB Board Help in Speeding Up Camera Development?
A MIPI to USB converter board helps speed up camera development in several ways:
- Plug-and-Play Integration: The MIPI to USB converter allows developers to quickly connect a camera sensor with a MIPI interface to a PC or development platform via USB. This plug-and-play functionality eliminates the need for custom hardware setups and makes it easy to start testing immediately.
- Cross-Platform Compatibility: USB interfaces are supported by virtually all development environments and operating systems, enabling seamless integration across different platforms. This broad compatibility means developers can focus on camera development without worrying about low-level interface issues.
- Real-Time Data Access: The converter facilitates high-speed data transfer from the camera sensor to the development system through USB, allowing developers to capture and analyze image and video streams in real-time. This enables faster testing, debugging, and fine-tuning of camera performance.
- Simplified Debugging: With USB, developers can use familiar debugging tools and software frameworks to interact with the camera system. This makes it easier to identify and fix issues early in the development process, speeding up iterations and reducing development time.
- Efficient Prototyping: The converter board enables rapid prototyping by allowing quick integration of different MIPI-based camera sensors into the development environment. Developers can test multiple camera modules and make design adjustments without needing custom hardware interfaces for each one.
Overall, the MIPI to USB converter board streamlines the development process by offering fast, flexible, and efficient connections between camera sensors and development systems, speeding up testing and validation.
By leveraging camera development boards, engineers can address many of these challenges effectively, speeding up the process of bringing innovative camera systems to market.
