Syzygy Dual MIPI Input Adapter

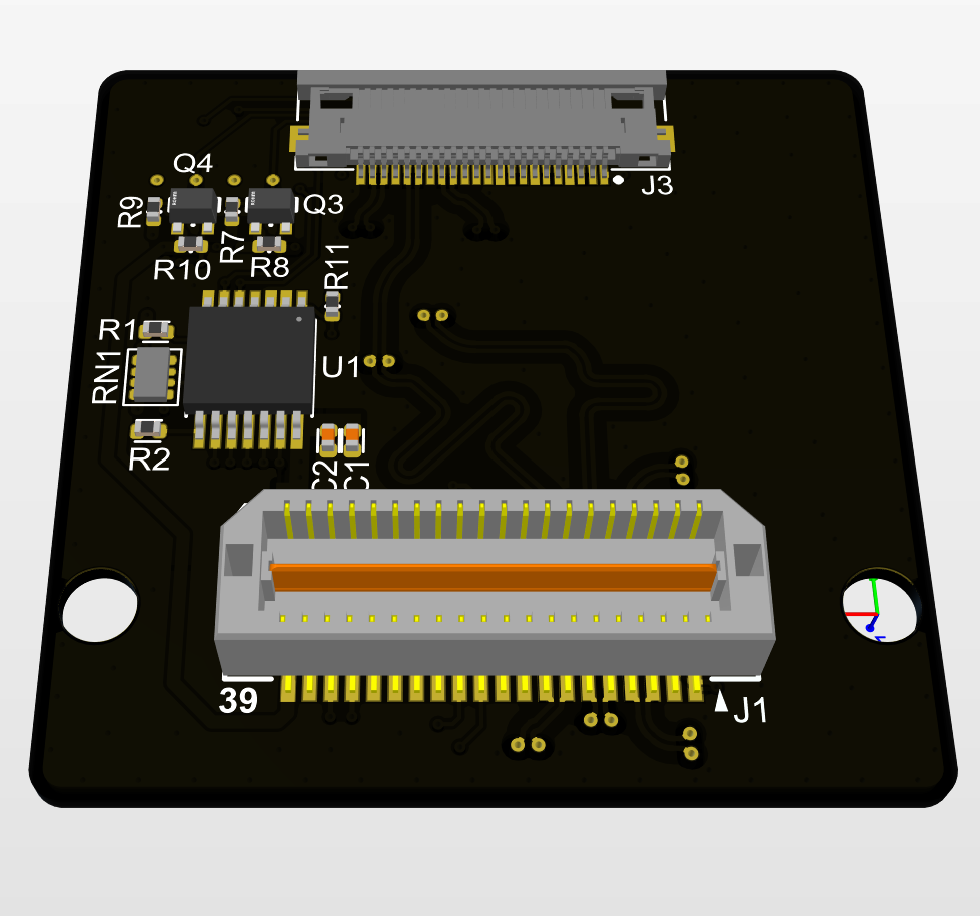

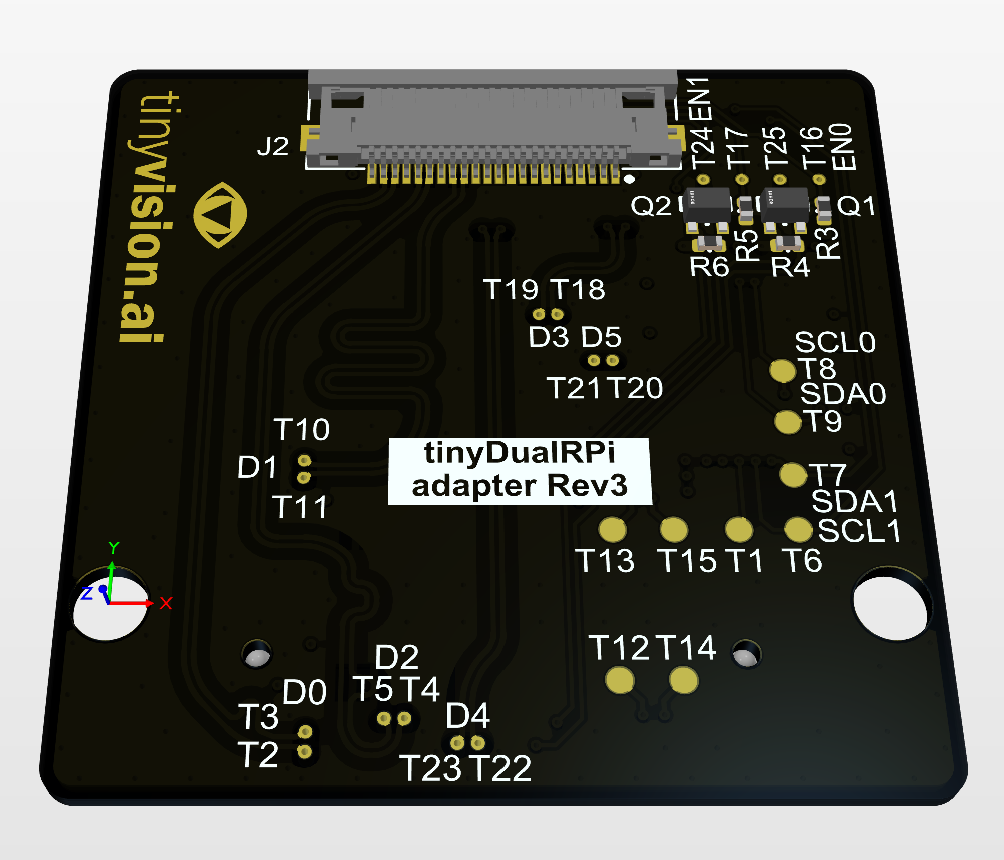

This Syzygy compatible adapter works with the tinyCLUNX33 developer kit to enable connecting two dual lane MIPI cameras to the devkit. Cameras supported include the RPi camera v2.

An on-board NXP PCA9542A I2C switch allows for transparent access to each camera to avoid an I2C collision and enables an unmodified camera driver to be used with these boards.

The current generation of the adapters uses a 15 pin camera connector and the next generation version will use the 22 pin camera connectors.

See the Schematic and Assembly drawings for further details.
