tinyVision.ai

Pico-Ice

Pico-Ice

$35.00 USD
$35.00 USD
Sale Sold out
Shipping calculated at checkout.

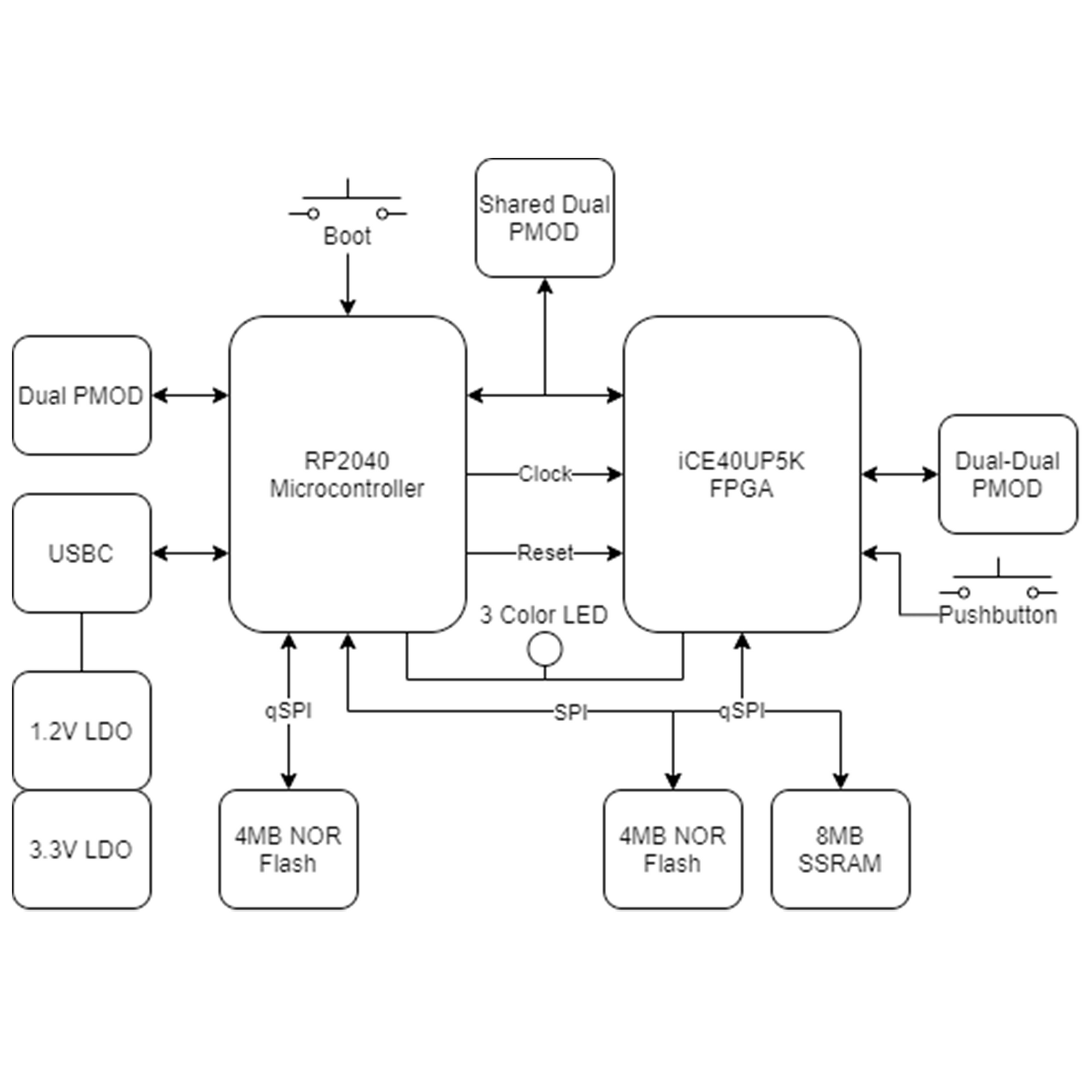

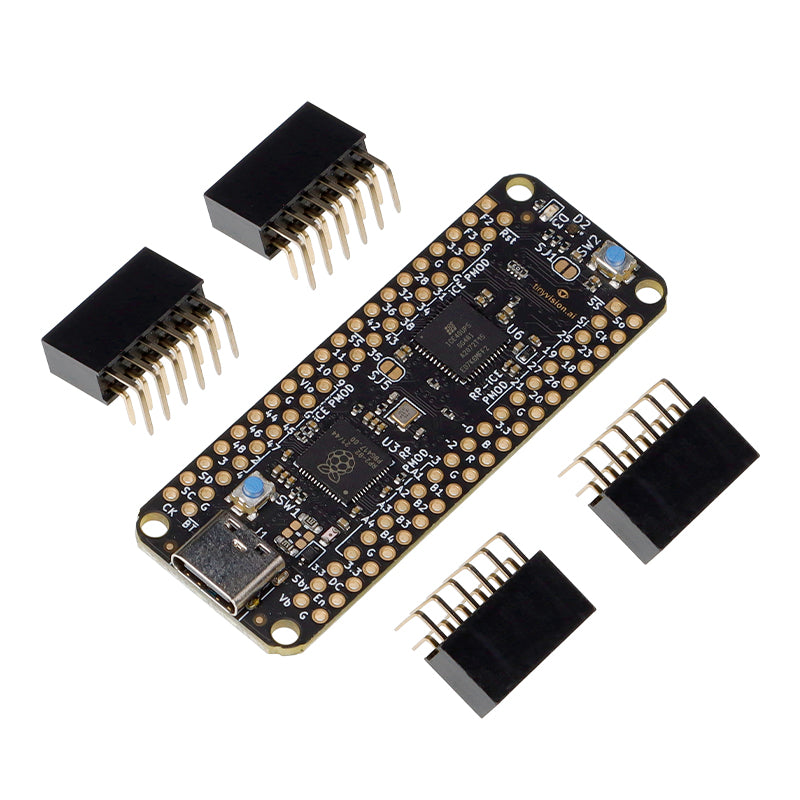

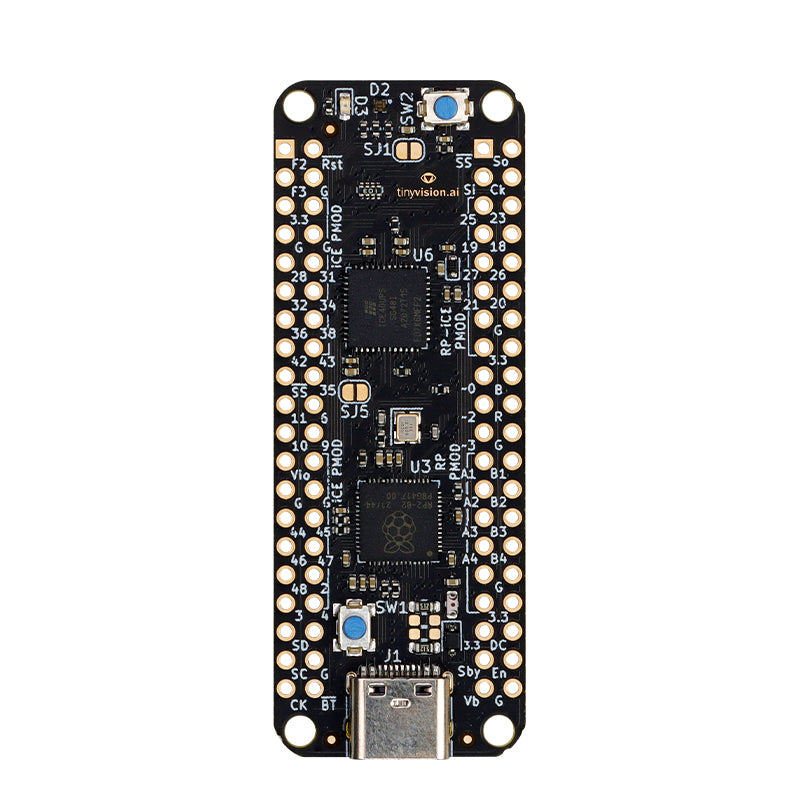

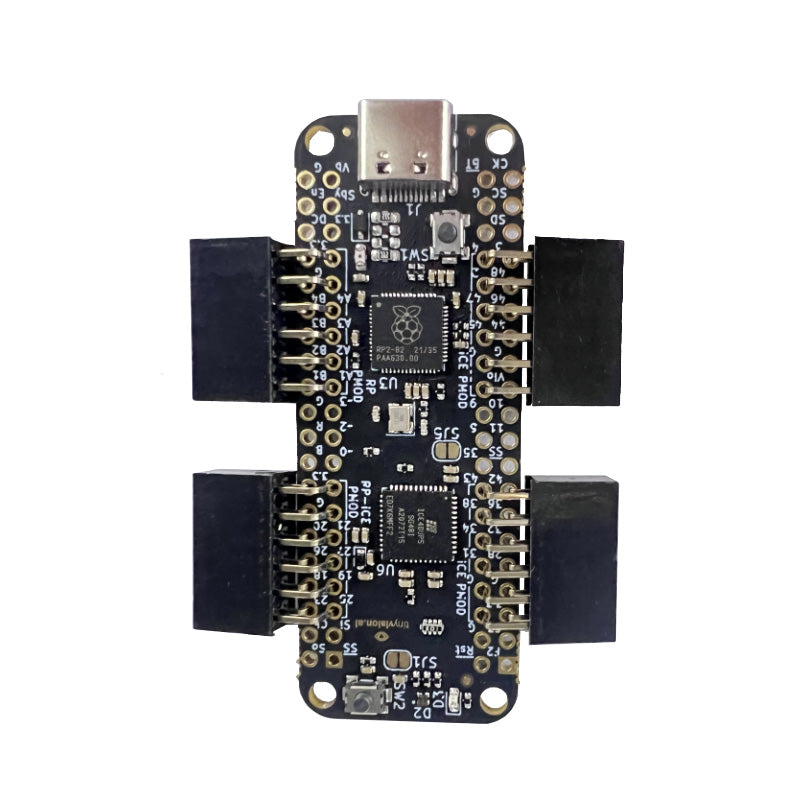

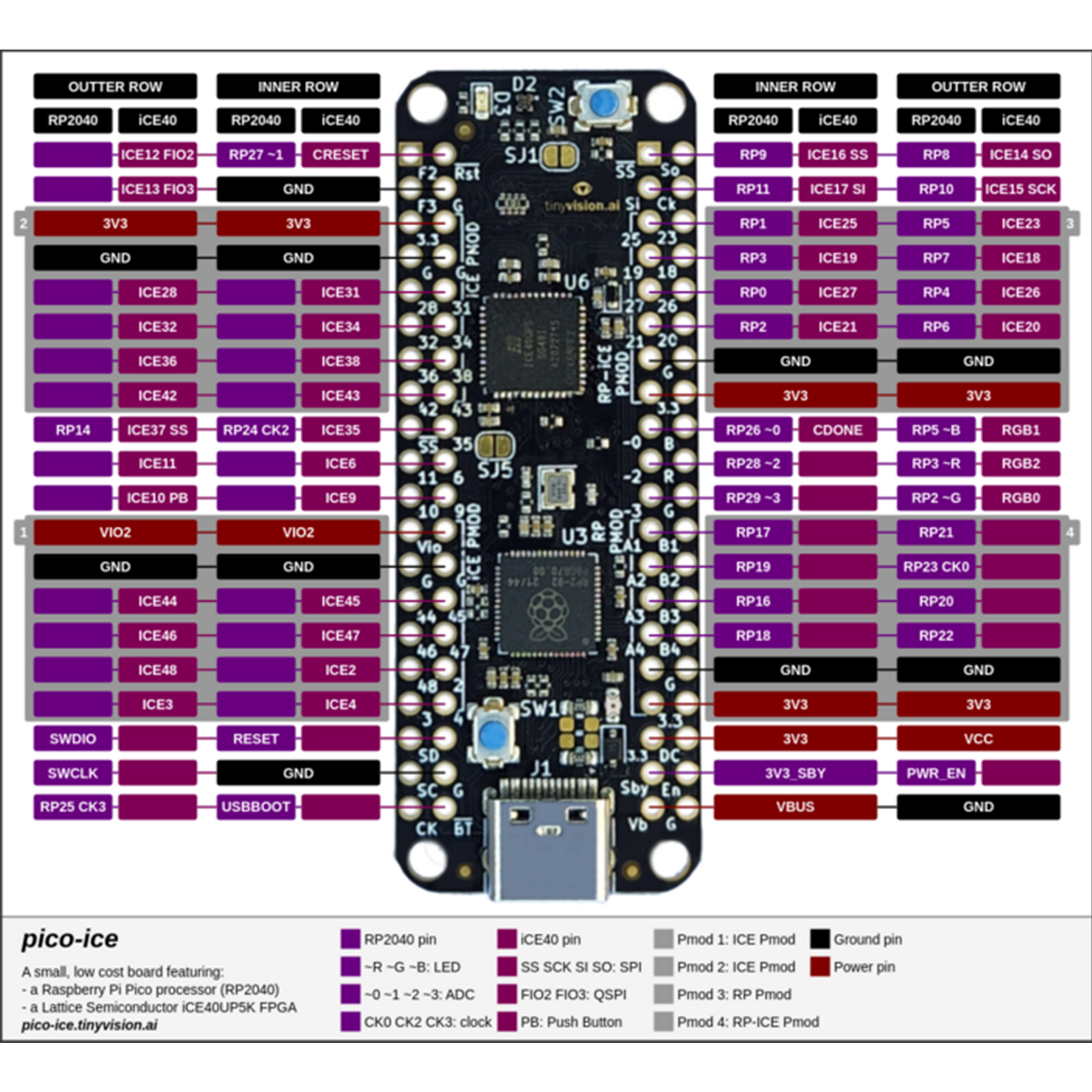

The pico-ice is a small, low cost board with the Raspberry Pi Pico processor (RP2040) and a Lattice Semiconductor iCE40UP5K FPGA. The board features independent flash for the FPGA and RP2040, low power SSRAM, a couple of pushbuttons and a 3 color LED with all FPGA and RP2040 pins brought out to easy to use 0.1" header pins (most arranged as PMOD's) for fast prototyping. Boards are fully tested and programmed with a blinking LED flash image before shipping. Included are four dual PMOD's (not soldered on to give you flexibility in mounting). Please note that a USBC cable is not included! View full details
Learn MoreRead the Docs!
